How Do I Install an Electrical Outlet?

Randy Johnson • July 23, 2025

While installing an electrical outlet may initially appear to be a significant undertaking, possessing the appropriate equipment, understanding, and safety measures makes it a readily achievable do-it-yourself project. Because electrical work poses inherent hazards, it is invariably recommended to summon a certified electrician should doubt or unease arise; for those residing in Edmonton, ACDC-Electric Edmonton offers a sound choice.


First and foremost, your safety is paramount. Before you start working with any wiring, it's essential to turn off the circuit that powers the outlet you're working on. You do this by locating the breaker box in your home and flipping the switch that corresponds to the outlet. Once the power is off, use the non-contact voltage tester confirming that the circuit is indeed inactive.


With the area secured, gather your tools: screwdrivers, wire strippers, and pliers, along with your new outlet. Remove the outlet cover and unscrew the fixture from the electrical receptacle. Carefully extend the outlet and inspect the existing wire configuration.


How To Install an Electrical Outlet?

Adding a new electrical outlet in your home can improve functionality and safety—especially if you’re relying on extension cords or power strips. But how do you install one safely and correctly?

In this guide, ACDC-Electric Edmonton, your trusted local electrician, walks you through the process and explains when it's best to call a licensed pro.



⚠️ Safety First: Should You DIY?

Before diving into the steps, ask yourself:

  • Are you familiar with your home’s electrical system?
  • Do you know how to turn off the power at the breaker?
  • Do local Edmonton codes require a permit or inspection?

Important: If you’re unsure, don’t risk it. Electrical work can cause fires or serious injury. Call a certified electrician in Edmonton—like ACDC-Electric—for safe and code-compliant service.



🛠️ Tools & Materials You’ll Need

  • New electrical outlet (standard or GFCI)
  • Outlet cover plate
  • Voltage tester
  • Screwdrivers
  • Wire stripper
  • Needle-nose pliers
  • Electrical box (if adding a new location)
  • Wire nuts or push connectors
  • Electrical tape
  • Drill & drywall saw (if cutting a new hole)



Step-by-Step: How to Install an Electrical Outlet

1. Shut Off Power at the Breaker

Go to your main panel and switch off the breaker for the circuit you’ll be working on. Use a voltage tester at the existing outlet or wires to double-check it's off.


2. Choose the Right Location

If installing a brand new outlet:

  • Find a stud-free area on the wall.
  • Use a stud finder to avoid pipes and obstructions.
  • Mark the spot with a pencil and trace the electrical box template.


3. Cut the Hole & Run Wire

  • Cut out the drywall using a drywall saw.
  • If wiring from an existing outlet, run 14/2 or 12/2 NM cable (depending on your circuit amperage) through the wall to the new location.


4. Install the Electrical Box

Insert an “old work” electrical box into the hole and secure it using the box clamps or wings.


5. Connect the Wires

  • Strip about ¾ inch of insulation from the ends.
  • Connect black (hot) to brass screw, white (neutral) to silver screw, and bare copper (ground) to the green screw.
  • Use wire nuts or push connectors if splicing from another source.


6. Mount the Outlet & Cover

  • Carefully tuck the wires into the box.
  • Screw the outlet into place.
  • Attach the cover plate.


7. Restore Power & Test

Turn the breaker back on and use your voltage tester to confirm the outlet is live. Plug something in to double-check functionality.



🧰 Need Help? Call ACDC-Electric in Edmonton

Even though installing an outlet seems simple, mistakes can lead to code violations or safety hazards. Whether you need:

  • A new outlet added
  • An old one replaced
  • GFCI or AFCI protection
  • Whole-home rewiring

ACDC-Electric Edmonton is here to help. We’re fully licensed, insured, and familiar with Alberta’s electrical codes.

📞 Call us at 270-393-5007 today for a free quote or fast same-day service.

While appearing deceptively simple, installing an electrical outlet requires a thorough understanding of electrical systems, coupled with strict adherence to safety protocols. ACDC Electric Edmonton emphasizes that flawed installation can lead to severe consequences, ranging from hazardous electrical discharges to devastating fires. Before even contemplating the use of a screwdriver, de-energizing the pertinent circuit is paramount. This is generally accomplished at your home's main electrical panel by toggling off the appropriate breaker.


To confirm complete power cessation before commencing work, always use a non-contact voltage tester, an electrical device that detects the presence of an electrical current without direct contact with the wires. Simply hold the tester close to the wires to check for any remaining current.


Once beaker power shutoff has been verified, the removal of the existing outlet can then begin. Carefully unfasten the faceplate, followed by the screws securing the outlet to the electrical box. Gently extract the outlet, paying close attention to the connected wiring. Using a screwdriver, loosen the screws that affix the wires and detach them accordingly.


Photographing the existing wiring configuration is highly advisable; it will prove an invaluable guide during the installation of the new outlet. Next, prepare the new outlet by stripping approximately ¾ inch of insulation from the wire termini, if required.

Once the wiring is properly prepared, connect it to the new outlet. Typically, the black wire (hot) is connected to the brass screw, the white wire (neutral) to the silver screw, and the bare copper wire (ground) to the green screw.


Ensure each color wire is securely fastened to its corresponding screw. After the connection, carefully tuck the wires back into the electrical box, positioning the outlet to sit flush against the wall surface. Secure the outlet to the box using screws and then fasten the faceplate. Finally, restore power to the outlet via the breaker and test its functionality using a receptacle tester. If any part of this process seems unclear or vvery challenging, ACDC Electric in Edmonton strongly recommends seeking the assistance of a licensed electrician.


Here’s a step‑by‑step guide on installing a standard electrical outlet, along with when to call AC‑DC Electric in Edmonton in the Edmonton area.



1. Safety First

  • Turn off power to the circuit at your breaker panel.
  • Test the outlet with a non-contact voltage tester to confirm there's no current.




2. Remove Cover & Outlet

  • Unscrew the cover plate and outlet.
  • Pull the outlet out carefully, keeping the wires attached.
  • Identify hot (black), neutral (white), and ground (bare/green) wires.




3. Inspect & Prep

  • On the new outlet, decide if the brass and silver-side tabs should stay—for example, separate circuits may require removing these tabs.
  • Strip about ½″ of insulation off each wire end.




4. Connect Wires

  • Attach hot (black) to the brass screw.
  • Attach neutral (white) to the silver screw.
  • Connect ground wire to the green screw or box.
  • Ensure no copper is exposed beyond the screw heads.




5. Reinstall & Test

  • Push the outlet into the box, secure with screws.
  • Snap on the cover plate.

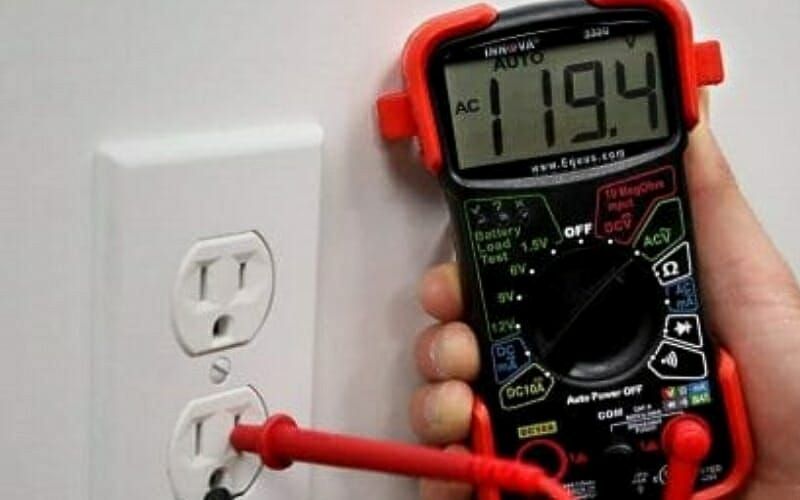

  • Restore power, then test the outlet with a plug‑in tester or voltage meter.




Installing a GFCI Outlet?

  • Required in kitchens, bathrooms, outdoors, garages.
  • Same process, but ensure “line” wires attach correctly. Test using the “RESET” and “TEST” buttons.



🛠️ Should You Hire AC‑DC Electric?

If you’re in the Edmonton, Colorado or broader Front Range area, AC‑DC Electric (970‑330‑1656) is the local branch servicing these parts. They’ve been operating since 1995, offering residential outlet installations, GFCI/AFCI upgrades, lighting, panel upgrades, and more.


Why go pro?

  • Safety & Code Compliance: Local codes (e.g., GFCI/AFCI zones) must be met.
  • Experience: Electrical work can be tricky—miswiring can cause fires or shocks.
  • Convenience: Proper installation, clean-up, liability coverage—and peace of mind.



Hiring ACDC-Electric in Edmonton, KY:

Local electricians like ACDC-Electric Edmonton offer outlet installation, including specialty receptacles (GFCI, AFCI, USB, tamper-resistant, 20 A, etc.) They can fit outlets where you need them—perfect for reading nooks, entertainment zones, or kitchen counters.



Quick Decision Guide

   Scenario

 DIY Safe?

 Consider Hiring

    Replacing a standard outlet

 ✅ If you're comfortable and follow steps

 ✅ To double-check GFCI/AFCI compliance

   Installing new outlet or circuit

 ❌ Needs wiring and panel work

 ✅ Hire a licensed electrician

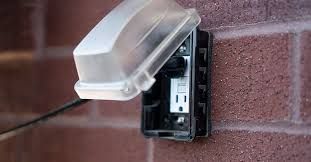

   Working in wet or outdoor areas

 ❌ GFCI & code-sensitive

 ✅ Definitely hire a pro



Next Steps

  1. DIY? Follow the steps above carefully.
  2. Prefer a pro?

Let me know if you’d like help locating a local electrician near you—or have questions about outlet types or troubleshooting!


Outlet Replacement

Electrical Outlet Replacements are more than just an exchange of compromised components, replacing an electrical outlet with ACDC Electric Edmonton signifies a critical safeguard for the robustness and security of your home's electrical system. Our team's expertise ensures that outlets, which may deteriorate over time due to damage or obsolescence, are replaced with the highest quality.



We specialize in addressing concerns such as weakened interfaces, fractures, or deteriorated wiring through comprehensive outlet substitutions. Our certified professionals conduct thorough diagnostic surveys to reveal latent complications, providing you with premier insights to optimize resolutions within your residence.



Choosing ACDC Electric Edmonton for your electrical needs brings a sense of peace of mind. Our highly competent and efficient team ensures that all nuances entailed within the establishment's high standards are governed with utmost care. We embrace exceptional elements and merge them with cutting-edge methodologies to yield solutions that never fall short of excellence.



This approach ensures maximum longevity throughout implemented projects, regardless of their shape and magnitude. We provide dedication wholeheartedly, remaining fully alert against any threats that may be looming along each route. Our firm commitment to safeguarding and optimizing for customer expectations under every possibility, despite limitations or adversity, ensures a secure and reliable home power solution.



Outlet Replacement: ACDC-Electric in Edmonton Can Safely Replace your Outlet

If your outlets are sparking, loose, or outdated, it’s time to consider a professional outlet replacement. For homeowners in Edmonton, ACDC-Electric offers expert, code-compliant service that protects both your devices and your family.


Why Replace Electrical Outlets?

Electrical outlets don’t last forever. If yours are:

  • Loose or discolored
  • Two-prong (ungrounded)
  • Warm to the touch
  • Cracking or sparking


If they’re overdue for replacement. Faulty outlets pose fire and shock risks—especially in older homes where wiring may be outdated. ACDC-Electric helps Edmonton homeowners bring their outlets up to today’s safety standards.

Edmonton, KY Trusted Choice: ACDC-Electric in Edmonton


With decades of experience, ACDC-Electric delivers licensed and insured electrical outlet replacements throughout Edmonton. Whether you’re upgrading to GFCI outlets in kitchens and bathrooms, switching to USB-integrated outlets, or replacing outlets damaged by overloads, our team ensures safe and reliable installation.


Signs You Need Outlet Replacement

  • Frequent breaker trips
  • Outlets that no longer hold plugs securely
  • Visible burn marks
  • Outlets located near water without GFCI protection


Don’t wait for a small issue to escalate into a full-blown hazard. ACDC-Electric offers fast inspections and free quotes for outlet replacements across Edmonton.


What to Expect with ACDC-Electric LLC in Edmonton

  • Transparent pricing
  • Clean and safe workmanship
  • Code-compliant upgrades
  • Friendly, local electricians


Book Your Outlet Replacement in Edmonton Today

ACDC-Electric makes electrical safety easy. Contact us today to schedule your outlet replacement in Edmonton—and power your home with confidence.

📞 Call now at 270-393-5007 or book online at ACDC-Electric in Edmonton for same-day service and guaranteed satisfaction.



Receptacle Outlet

Ensuring a secure and readily accessible power interface, receptacle outlets form a crucial juncture within any electrical framework. From residential dwellings to sprawling industrial complexes, these ubiquitous sockets are essential. ACDC Electric Edmonton distinguishes itself by presenting a comprehensive catalog of receptacle outlets, ensuring that we have the right solution for your unique needs.



Selecting an appropriate electrical outlet requires due diligence. Beyond a basic understanding, critical consideration of the application and precise electricity demands of connected appliances is indispensable.



Rather than merely matching volts and amps, one must ensure complete system protection via properly implemented grounding. As such, ACDC Electric Edmonton dedicates itself to specialized consulting, a process that involves [specific steps or tools used], allowing for a confident matching of outlets to customer usage parameters.



Transcending mere supply, ACDC Electric Edmonton also administers proficient fitting solutions. Operating in complete concordance with current legislations, a team of highly skilled, licensed experts administers installations that guarantee steadfast security and system robustness, providing you with peace of mind.



🏢 Business Overview

AC‑DC Electric – Edmonton, KY

  • A family‑run electrical contractor serving residential, commercial, and light industrial clients in Edmonton, Glasgow, and Columbia, KY.
  • They specialize in everything from standard outlet/receptacle wiring and lighting to generator (Kohler) installation and security systems.
  • They’ve been operating since 1995, with multiple generations of a family running the business.




📍 Address & Contact Info




Hours of Operation

  • Monday–Saturday: 8:00 AM – 6:00 PM
  • Sunday: Closed




Recetable Outlet Services Offered

  • Residential, Commercial & Industrial Electrical (lighting, wiring, outlets, security, etc.)
  • Kohler Generator Sales & Service (certified techs)
  • Security/Surveillance Solutions




👷 Team Highlights

  • Roger Shea (Founder/Master Electrician)
  • Cameron Williams (Owner/Master Electrician/Kohler Tech)
  • Rand Shea, Carter Williams, Carson Williams (Electricians—all Kohler certified) acdc-electricedmonton.com




🛠️ Helpful DIY Guides

Their website includes how‑to articles on outlet (receptacle) replacement and other electrical topics, though these are general guides—not specific to their Edmonton location ACDC Electric in Edmonton.

Outlet Wiring in Edmonton, Glasgow, Columbia & Greensburg, KY– Expert Service by ACDC Electric

Wiring a new outlet may seem like a minor upgrade, but it’s a critical component of your home’s electrical safety and efficiency. Whether you're adding new appliances, upgrading old wiring, or building an addition, professional outlet wiring ensures your system handles the load without risk. If you're in Edmonton and need safe, certified electrical work, ACDC Electric is your trusted local expert.


Why Proper Outlet Wiring Matters

Many homes in Edmonton—especially those built more than 20 years ago—have outdated wiring that can’t support modern electrical needs. Overloaded circuits, loose connections, or improper grounding can lead to:

  • Flickering lights
  • Tripped breakers
  • Burnt or discolored outlets
  • Even fire hazards


That’s why it’s critical to have any outlet wiring or rewiring performed by a licensed electrician.


Outlet Wiring Services

At ACDC Electric in Edmonton, we handle outlet wiring jobs of all sizes for both residential and commercial clients. Our services include:

  • ✅ Installing new outlets (standard, GFCI, USB, etc.)
  • ✅ Replacing or upgrading old outlets
  • ✅ Troubleshooting faulty or dead outlets
  • ✅ Wiring for new appliances or renovations
  • ✅ Tamper-resistant outlet installation (for child safety)
  • ✅ Grounding and surge protection


All work is done to code and with permits when required. No shortcuts. No guesswork. Just reliable, safe wiring you can trust.

Signs You Need Outlet Wiring Help


Not sure if it’s time to call a local electrician? Watch for these warning signs:

  • 🛑 Outlets that feel warm to the touch
  • 🔌 Plugs that fall out easily or spark
  • ⚡ Buzzing sounds coming from the outlet
  • 🔁 Frequent breaker trips when using appliances


If any of these sound familiar, it’s time to book an inspection.


Why Choose ACDC Electric in Edmonton?

We’re a locally owned, fully licensed electrical company serving homeowners and businesses throughout the Edmonton area. Here’s what sets us apart:

  • 👷‍♂️ Red Seal–certified electricians
  • 🕒 On-time service and fast response
  • 💬 Clear communication and upfront pricing
  • 🧰 Fully stocked service vans for same-day repairs
  • 🛡️ 100% satisfaction guarantee


From single-outlet upgrades to whole-room rewiring, ACDC Electric in Edmonton, Glasgow, Columbia & Greensburg brings over

20 years of experience to every job. Get a Free Quote Today


Outlet wiring isn’t a DIY job — it requires proper knowledge of load balancing, grounding, and electrical code requirements. When done right, it can improve energy efficiency, reduce fire risk, and support your growing power needs.

Call ACDC Electric in Edmonton, KY, today to schedule a free quote or book your outlet wiring service. Fast. Friendly. Professional.


Electrical Plug Types

Electrical Plug Types, ACDC Electric Edmonton

Across the world, electrical plug types exhibit considerable diversity, reflecting divergent national specifications and historical evolution. This diversity encompasses not solely the plugs’ physical forms but also the electrical current’s voltage and frequency, which they are intended to accommodate.


Comprehending these different plug distinctions is essential for international travelers, importers, and manufacturers alike. In North America, for example, one predominantly finds Type A and Type B plugs, distinguished by two or three flat pins, respectively, operating at 120V. Conversely, much of Europe relies on Type C, E, and F plugs, which feature two round pins and operate within the 220-240V range. The United Kingdom uniquely utilizes the Type G plug, which is readily identifiable by its three rectangular pins and operates at 230V.


The consequences of not adhering to local electrical standards can be significant, particularly for businesses. Travelers often need plug adapters to ensure their devices are compatible with local power outlets. Without the right adapter, electronic devices may become unusable, causing significant inconvenience. For businesses, especially those exporting electrical goods, meeting the precise plug and voltage requirements of the destination market is crucial. Failure to do so can render products unsellable or even create hazards during use.



ACDC Electric: Edmonton's Electrical Experts

ACDC Electric in Edmonton, KY, is a reliable provider of comprehensive electrical services. They are licensed for residential, commercial & Industrial clients, offering a wide range of solutions, including electrical installations, repairs, and maintenance services. Their team of licensed and certified electricians is equipped to handle projects of all sizes, from minor wiring adjustments to substantial electrical system modernizations.



ACDC Electric in Edmonton is committed to delivering high-quality workmanship and maintaining strict safety standards, ensuring the safety of their clients and the longevity of their electrical systems.

ACDC Electric goes beyond basic electrical tasks to specialize in energy-efficient technologies, helping clients reduce their energy costs.



This includes the installation of LED lighting, the implementation of smart home networks, and other energy-saving innovations. ACDC Electric's commitment to customer satisfaction and their reputation for excellence have made them a highly respected name in Edmonton's electrical services sector.



Whether you're starting a new construction project or need a routine electrical inspection, ACDC Electric in Edmonton is dedicated to providing professional and reliable support, ensuring that your needs are met and your expectations are exceeded.



Understanding Electrical Plug Types: ACDC Electric Edmonton, KY

When it comes to electrical plug types, it’s more than just choosing what fits — it’s about safety, compatibility, and performance. Whether you’re upgrading your home or setting up a commercial space in Edmonton, KY, ACDC Electric is here to help you understand which plug types matter and why.


Common Electrical Plug Types in North America

In the United States and Canada, the most common plug types are Type A and Type B:

  • Type A: Two flat parallel prongs. Used for ungrounded devices.
  • Type B: Two flat prongs and a grounding pin. Offers additional protection.


These plugs typically connect to 120-volt outlets, the standard in North American residential settings.

Specialty Plugs You Might Encounter

Depending on your needs, you might also run into:

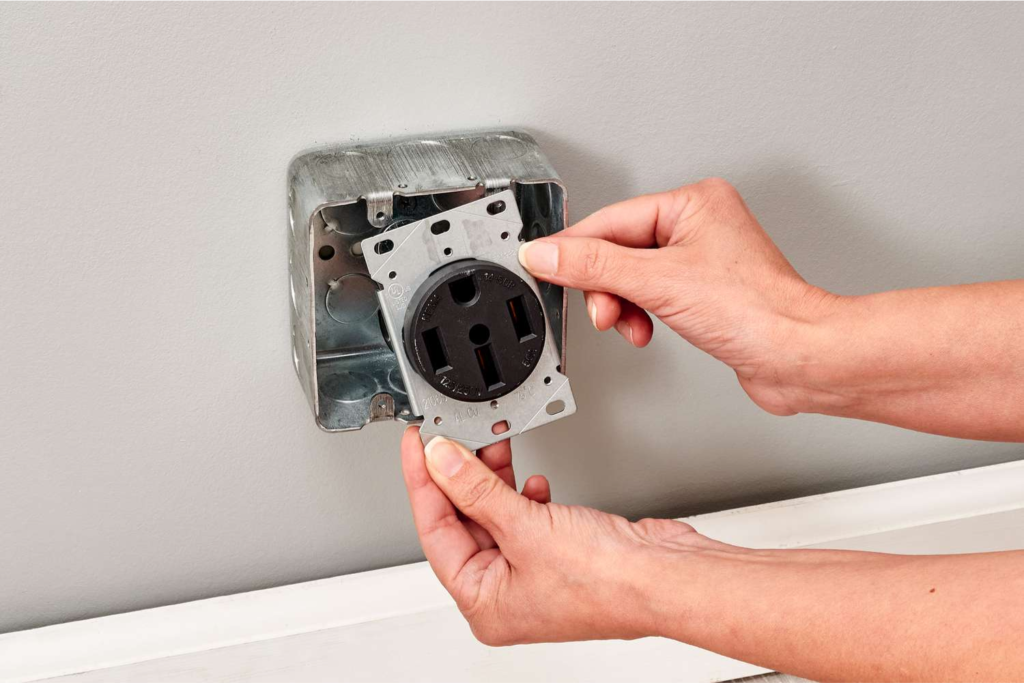

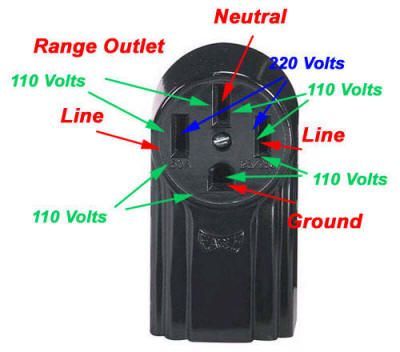

  • 240V plugs (for dryers, ovens, or HVAC systems)
  • Twist-lock plugs (used in industrial or commercial setups)
  • GFCI and AFCI outlets (for areas near water or to prevent electrical fires)


Why Plug Type Matters

Using the wrong plug or outlet can:

  • Overload circuits
  • Cause poor equipment performance
  • Increase fire or shock risk


That’s why it’s essential to ensure your home or business is wired with the right plugs — and that’s where ACDC Electric Edmonton comes in. ACDC Electric: Edmonton, KY’s Trusted Electrical Partner


Whether you're replacing old outlets, upgrading to grounded plugs, or planning a new construction, ACDC Electric provides:

  • Residential and commercial electrical services
  • Outlet installation and upgrades
  • Compliance with Kentucky electrical codes
  • Fast, safe, and professional service


Ready for an Upgrade?

If you’re unsure which electrical plug types you have — or which ones you need — call ACDC Electric Edmonton, KY today. We’ll inspect, advise, and install to make sure your power connections are safe and code-compliant.

Type C Plug & Type F Plug – ACDC-Electric Edmonton

When traveling or relocating, understanding plug types is essential for powering your devices safely. At ACDC-Electric Edmonton, we often get questions about international plug compatibility, especially regarding Type C and Type F plugs.


Type C Plug

  • Shape: Two round pins
  • Voltage: 220–240V
  • Current: Up to 2.5 A
  • Used In: Most of Europe, South America, and parts of Asia
  • Compatibility: Fits into Type E, F, J, K, and N outlets


Type C plugs are not grounded and are mainly used for smaller electronics like chargers and lamps. These plugs are common in hotel rooms and homes abroad.



Type F Plug (Schuko Plug)

  • Shape: Two round pins with two grounding clips
  • Voltage: 220–240V
  • Current: Up to 16 A
  • Used In: Germany, the Netherlands, Spain, and more
  • Compatibility: Works with Type C and E sockets


Type F plugs are grounded and suitable for higher-power appliances like refrigerators, washers, and kitchen devices.



ACDC-Electric in Edmonton, KY, Can Help

If you're planning a move or just need help with plug adapters, surge protectors, or wiring for international electronics, ACDC-Electric Edmonton offers expert solutions. We ensure your devices operate safely, whether they're using a Canadian NEMA plug or a European-style Type C or F.

Contact us for plug conversion advice, travel-ready outlet installations, or safe wiring upgrades.

240 Volt Outlet Installation
Embarking on a 240-volt outlet installation is a task where enlisting expertise becomes paramount. While seemingly straightforward, the inherent safety implications necessitate a cautious approach. The reality of handling electricity mandates scrupulous precautions; hence, unless you possess confident familiarity, securing a certified electrician is the judicious course of action.


Located in Edmonton, KY, ACDC Electric stands ready as your trusted electrical contractor, comprehensively equipped to address all your electrical demands. With a proven track record spanning several years in installing 240-volt outlets, we pledge unwavering safety and dependable service to our valued clientele. As a fully licensed and insured entity, our purview encompasses an expansive spectrum of electrical solutions.


In the event that contemplating the addition of a 240-volt receptacle to your home or business is on your agenda, reaching out to ACDC Electric today secures you a complimentary consultation. Our team commits to carefully evaluating your particular needs, subsequent to which we will furnish a detailed estimate – anticipating the opportunity to engage with you imminently.

240 Volt Outlet Installation – ACDC Electric Edmonton, KY


When it comes to powering heavy-duty appliances like electric dryers, ovens, or EV chargers, a standard 120-volt outlet simply won’t do. That’s where a 240 volt outlet installation comes into play. If you're in Edmonton, KY, the trusted name for this job is ACDC Electric.


Why Install a 240 Volt Outlet?

A 240V outlet is essential for:

  • Electric ranges or cooktops
  • Clothes dryers
  • Water heaters
  • HVAC systems
  • Electric vehicle chargers


These appliances require more power to run efficiently—and safely. Installing a 240 volt outlet ensures optimal performance without overloading your home's electrical system.


Professional Electrical outletInstallation Is Key

While some DIY enthusiasts may be tempted, 240V outlet installation involves dealing with high-voltage wiring. This isn't just a job for a weekend project—it requires:

  • Code-compliant wiring
  • Proper breaker panel connections
  • Safe grounding and polarity checks


That’s why homeowners and businesses in Edmonton, KY rely on ACDC Electric. Our certified electricians ensure every installation is up to code and fully tested for safety.


Why Choose ACDC Electric Edmonton, KY?

  • Licensed & Insured technicians
  • Decades of combined electrical experience
  • Clear estimates and upfront pricing
  • Fast, reliable scheduling

Whether you're remodeling a kitchen, installing an EV charger, or replacing an outdated outlet, we provide expert 240 volt solutions tailored to your needs.



Contact ACDC Electric in Edmonton, KY Today

📞 Call us now to schedule your 240V outlet installation.
📍 Serving Edmonton and surrounding areas across south-central Kentucky.
🔌 Power up your home safely—with ACDC Electric.



Power Outlet

Power outlets, the unsung heroes of modern living, are ubiquitous in contemporary society. They form a cornerstone of our existence, delivering the vital energy that fuels both homes and enterprises. Their absence would render countless devices— upon which daily life hinges—inoperable.


Serving the Edmonton, KY vicinity, ACDC Electric distinguishes itself as a purveyor of comprehensive electrical solutions. The company's proficiencies encompass dependable power outlet installation, alongside adept repair work. Throughout the community, it has earned validation, instilling confidence in our services.


For inhabitants requiring power outlet configuration or restoration, ACDC Electric offers an optimal solution. Our cohort of seasoned electricians is poised to finalize assignments both promptly and skillfully. We affirm our dedication to preeminent customer interaction, ensuring you feel valued and important.


📍 AC‑DC Electric LLC (Power Outlet & Electrical Services

  • Address: 234 Powell Rd, Edmonton, KY 42129
  • Phone: (270) 393‑5007
  • Hours: Mon–Sat 8 am–6 pm; Sun closed
  • Services: Residential, commercial, light industrial electrical services including outlet installations, generator maintenance, panel upgrades, security systems, and Kohler-certified generator services


Why People Choose Them

  • Local family business—operating since 1995, with over 40 years of experience in reliable electrical and generator solutions
  • Certified technicians—including Kohler generator techs; fully licensed, insured, and focused on customer satisfaction
  • No-payment guarantee—work is not charged until customers confirm full satisfaction



💡 Typical Outlets / Electrical Work

If you're specifically looking for outlet services, AC‑DC Electric can help with:

  • New outlet installs or replacements
  • Adding dedicated circuits for appliances or home office use
  • Updating old or damaged outlets
  • Installing GFCI outlets where needed
  • Electrical panel upgrades to support additional



Recommended Next Steps

  1. Call (270) 393‑5007 to describe your outlet needs (e.g., number, type, location).
  2. Request a free estimate—they’ll usually arrange an on-site visit.
  3. Ensure your project aligns with their Mon–Sat, 8–6 schedule.




Wiring an Outlet

Wiring an Outlet, ACDC Electric Edmonton, KY

Electrical Outlet Wiring: A Prudent Approach. While undertaking electrical outlet wiring might initially appear intimidating, meticulous preparation combined with stringent safety measures renders it a feasible do-it-yourself endeavor. Before making any contact with wiring, ensure the circuit's power supply is interrupted at the breaker panel; this precaution is paramount. To conclusively verify the absence of voltage, employ a non-contact voltage tester as a redundant safety check.


With the circuit de-energized, the next step is to assemble the right electrical tools and materials. Essential tools and materials typically include screwdrivers (both flathead and Phillips-head), wire strippers, a replacement outlet, and, potentially, electrical tape for insulation. Methodically detach the existing outlet from the wall, taking note of the wire connections' configuration.


Conventionally, a black wire represents the "hot" conductor, a white wire denotes the neutral, and a green or bare copper wire serves as the ground. Should uncertainty arise at any juncture during this process, seeking counsel from a certified electrician remains the judicious course of action. Firms such as ACDC Electric, based in Edmonton, KY, can furnish expert guidance, guaranteeing both safety and procedural accuracy. Their role is crucial in ensuring your project's success and your safety. Electricity demands respect; inadvertent errors risk severe physical harm or even instigating a fire.



  • ACDC Electric LLC is located at 234 Powell Rd, Edmonton, KY 42129, and is fully licensed and insured to handle residential, commercial, and light‑industrial electrical projects in Edmonton, Glasgow, and Columbia, KY
  • They’ve been operating since 1995, with over 40 years of experience (including a family legacy starting with the founder, an Army veteran).
  • Customer reviews highlight their professionalism, punctuality, knowledge, and courteous demeanor—“phenomenal,” “arrived early,” “knew what they were doing.
  • They guarantee satisfaction before taking payment and offer free estimates.



Wiring an Outlet – DIY Safety Tips & When to Call ACDC Electric

Wiring an outlet involves handling live circuits, so here’s a safe approach:

✅ If You're DIY-Inclined:

  1. Turn off power at the breaker and verify with a tester.
  2. Match wire colors: Black/red = hot, white = neutral, green/bare = ground
  3. Connect correctly:
  • Black (hot) to brass terminal
  • White (neutral) to silver terminal
  • Green/bare to green “ground” screw
  1. Tighten terminals, tuck wires neatly, attach the outlet, and install the wall plate.
  2. Restore power and test the outlet.


⚠️ When to Call a Pro:

  • You're unfamiliar with wiring or local electrical codes (Kentucky follows NEC standards).
  • You need GFCI/AFCI protection, are adding multiple outlets, or have a faulty circuit.
  • You want it done safely and up to code—ACDC Electric in Edmonton offers free estimates and guarantees all residential wiring work. Call 270-393-5007



Contacting ACDC Electric Info details-

  Phone (270) 393‑5007 ☎️

   Email

 acdcedmontonky@gmail.com

   Hours

 Mon–Sat 8 AM–6 PM; Sun closed ACDC Electrical Services+10acdc-electricedmonton.com+10Manta+10



Service coverage

 Edmonton, Glasgow, Columbia & Greensburg, KY



Why chooseACDC-Electric in Edmonton, KY?

 40+ years in business, licensed, insured, offers free estimate, satisfaction guaranteed www.acdc-electricedmonton.com



Recommendation

If you just need a single outlet replacement and know your way around a voltage tester, you could follow the steps above carefully. But if you want peace of mind, correct breakers/GFCIs, or have any concerns—and based on their strong local reputation—it’s worth calling ACDC Electric for a professional job done safely and to code.

Electrical outlet wiring, although initially appearing daunting, becomes a manageable DIY project with thorough preparation and strict adherence to safety measures. Foremost, before all else, the circuit's power must be entirely cut off at the breaker panel before any wiring manipulations—this is an absolute necessity. As an added precaution, use a non-contact voltage detector to confirm the absence of any residual current with meticulous care.


Having confirmed the circuit is de-energized, assemble all essential tools and materials. Typically, this includes screwdrivers (both flathead and Phillips-head), wire strippers, a new outlet to replace the existing one, and electrical tape for proper insulation. Carefully extract the old outlet from its housing, paying particular heed to the wire connections. Convention dictates that the black wire represents the "hot" or live conductor, the white wire signifies the neutral pathway, and the green or bare copper wire grounds the system.


If doubt clouds any aspect of this process, consulting a certified electrician is a prudent decision. Experts, such as those at ACDC Electric in Edmonton, KY,  deliver specialized counsel and ensure the task's safe and proper execution. Bear in mind that electricity demands unwavering respect; missteps can hold potential for grave bodily harm or even incendiary events.


AC Outlet Wiring: Trust ACDC-Electric Edmonton for Safe and Reliable Installation

Wiring an AC outlet requires precision, adherence to local codes, and a clear understanding of electrical safety. At ACDC-Electric Edmonton, our certified electricians bring years of experience to every outlet wiring project—whether you're upgrading old wiring, installing new outlets, or troubleshooting issues.

Improper AC outlet wiring can lead to power loss, short circuits, or even fire hazards. That’s why homeowners and businesses across Edmonton, Glasgow, Columbia & Greensburg, KY, trust ACDC-Electric for:


  • Safe and code-compliant installations
  • Troubleshooting and repair of faulty outlets
  • Upgrading two-prong to three-prong systems
  • GFCI and AFCI outlet setup for kitchens, bathrooms, and outdoors


Avoid DIY risks—contact ACDC-Electric Edmonton today for expert AC outlet wiring services you can count on.



How to Wire an Outlet?

Electrical outlet wiring, though seemingly perplexing at first glance, becomes a manageable project when approached with meticulous preparation and rigorous adherence to safety protocols. Critically, the power feeding the relevant circuit must be wholly disconnected at the breaker panel before undertaking any wiring adjustments; this constitutes a mandatory prerequisite.

Substantiating this action, a non-contact voltage detector should be deployed to confirm unequivocally that no errant current lingers.


After confirming that the system is de-energized, assemble all the requisite implements and materials: typically, screwdrivers (both flathead and Phillips-head), wire strippers, a new receptacle ready to replace the existing unit, and electrical tape designated for insulation enhancement. Methodically withdraw the existing outlet from its enclosure, noting specifically how the wires connect. Industry consensus establishes that the black wire represents the 'hot' or energized conductor, while the white wire denotes the neutral return, with the green wire, or bare copper strand, grounding the circuit.


Should  you feel uncertain at any stage of wiring the outlet, consult a certified electrician. Professionals, such as those at ACDC Electric situated in Edmonton, KY, render bespoke guidance, thereby safeguarding the project's integrity. Electricity, implacable in its nature, punishes any lapse in procedural precision with grievous injury or the risk of fire.


Upon extracting the obsolete outlet, carefully inspect the wiring for any signs of degradation, such as fraying or erosion. Should anomalies arise, resolve these matters before further intervention; vitiated wires often induce short circuits, heightening safety anxieties. As the new receptacle undergoes integration, certify that each electric filament affixes securely at its ordained terminal point. The black strand interlinks to the brass screw, with the white syncing to silver, and the ground attaching to the verdant screw.


Make sure that the electrical outlet wiring remains taut with no bare wiring visible. Upon completing the outlet wiring tuck the electrical filaments into the electrical compartment to prevent compression or pinching. Firmly turn the screws to anchor the up-to-date outlet wiring inside its container housing, ensuring its facade aligns cleanly with the adjacent wall structure.


Conclusively, restore service at the breaker—testing, subsequently, functionality—by introducing a receptacle analyzing contraption to assure expected results. Local electrical guidelines, which extend beyond these underpinnings, provide crucial guidance on outlet wiring procedures, location constraints, and grounding tactics.


Breaching compliance attracts penalties ranging from monetary fines to complicated coverage denials should electrical anomalies or related insured contingencies surface later. The paramount safety reduction stems from cutting corners carelessly due to ignorance. Consulting your local regulatory personnel office/certified electrical contractor ensures insights into standards.


Scrutinize existing wiring for viability or modern compatibility too because historical circuits present issues that necessitate system modifications, or entire circuit upgrades performed, whenever system integrity weakens when integrated due to obsolescence for safeguarding against modern demands by certified installers as part due for diligence's demand prior further progression.


Contact the proper individuals during problematic occasions and respect high-potential inherent power systems that demand close critical attention without fault during application by diligent installers.   Protect parties near these implemented fixtures throughout structural alterations—prior critical checks and certified validation always ensue.


How to Wire an Electrical Outlet?

Wiring an outlet might seem intimidating, but with the right tools and precautions, it’s a manageable task for experienced DIYers. Whether you're replacing a damaged receptacle or upgrading to a modern one with USB ports, understanding how to wire an outlet is essential. ACDC Electric Edmonton is here to guide you through the process — or do the work for you with safety and professionalism in mind.



Tools & Materials Needed

  • Screwdriver (flathead & Phillips)
  • Wire strippers
  • Needle-nose pliers
  • Voltage tester
  • Electrical tape
  • New outlet (15A or 20A as per your circuit)
  • Wire nuts
  • Faceplate



Safety First: Shut Off Power

Before doing anything, turn off power at the breaker panel to the circuit you’ll be working on. Use a voltage tester to confirm the outlet is completely de-energized.



Step-by-Step Guide to Wiring an Outlet

1. Remove the Old Outlet

  • Unscrew and remove the outlet cover plate.
  • Unscrew the mounting screws and gently pull the outlet from the electrical box.
  • Use a tester again to double-check there’s no power.
  • Note how the wires are connected before removing them (take a photo for reference).

2. Inspect the Wiring

  • Black (hot) wire connects to the brass terminal.
  • White (neutral) wire connects to the silver terminal.
  • Bare or green wire connects to the ground screw (green).

3. Prepare Wires

  • Strip about ¾ inch of insulation off each wire end if needed.
  • Use needle-nose pliers to create a hook for terminal screws, or use the push-in slots if your outlet supports them.

4. Connect the New Outlet

  • Connect wires to the correct terminals:
  • Black to brass
  • White to silver
  • Ground to green
  • Ensure all connections are snug.

5. Secure and Finish

  • Carefully tuck wires back into the electrical box.
  • Screw the outlet into place.
  • Attach the faceplate.
  • Turn the breaker back on and test the outlet.



When to Call a local Electrican?

While many homeowners are comfortable with basic wiring tasks, improper outlet wiring can cause fire hazards or shock risks. If you're unsure about your home’s wiring or local electrical code, it’s best to contact a licensed electrician.



Why Choose ACDC Electric in Edmonton?

  • ✅ Licensed & insured electricians
  • ✅ Fast and reliable service
  • ✅ Code-compliant and safe installations
  • ✅ Residential & commercial outlet wiring
  • ✅ Competitive rates in the Edmonton area

Whether it’s a single outlet replacement or a full electrical upgrade, ACDC Electric Edmonton is your trusted partner for safe, code-compliant wiring services.



Need help with outlet wiring in Edmonton?
📞 Contact ACDC Electric in Edmonton, Glasgow, Columbia & Greensburg, KY, today at 270-393-5007 for expert service and peace of mind.

Replacing an electrical outlet is a task that demands attention to detail. While appearing simple at first glance, meticulous preparation, coupled with steadfast adherence to safety regulations, transforms it into an achievable undertaking. The paramount first step entails completely disconnecting the circuit's power supply at the breaker panel prior to initiating any work. Infallibly verify that power is absent by utilizing a non-contact voltage detector, thereby confirming the absence of any electrical flow.



Only once power is assuredly cut, assemble the necessary implements, including both flathead and Phillips head screwdrivers, wire strippers, a replacement receptacle, and electrical tape. Proceed with measured caution as you detach the former outlet, vigilantly noting the pre-existing wiring scheme.



As a general rule, the black conductor carries the current ("hot"), while the white functions as the neutral return; the green or bare copper wire is assigned the earth ground. Should uncertainty arise at any stage, consulting a licensed electrician is strongly advised; electricity allows for no leniency, and mistakes can lead to severe injury or ignition.



Once the aged outlet is extracted, scrutinize the wiring for potential deterioration, such as fraying or corrosion, and mitigate detected hazards preemptively, as compromised wires may lead to short circuits or increase risks. When affixing the novel receptacle, connect each cable to the corresponding terminal: black to the gold-colored screw, white to the silver screw, and ground to the green screw.



Validate the secure engagement of each connection, leaving no bare wires exposed. Handle the wires delicately and restore them carefully to the electrical box, thereby avoiding undue pinching or constriction. Affix the novel outlet using its mounting bolts and ensure a flush alignment with the wall's surface.



With meticulousness addressed, restore power to the respective circuit by reconnecting the circuit via the breaker panel before employing a receptacle tester to validate expected parameters and proper performance. Diligently heed applicable regulatory ordinances specifying procedure details concerning wiring specifications in addition to installation limitations regarding safe placements, so your activity receives certification without insurance lapse and failure modes thereof from a qualified professional's inspection on-site before accepting liability personally by assuming occupancy post installation without said validation happening.


To ensure your well-being while staying secure and adhering to standards, employing certified, skilled, and proficient electricians must assume their responsibilities professionally with confidence, providing peace of mind in any unpredictable scenario involving complex circuitry or installation codes. This ensures both system correctness throughout its lifetime and that post-maintenance schedule execution is conducted meticulously. Seeking counsel ensures compliant conduct, thereby preserving your well-being.



Installing an Electrical Outlet Outside?

Adding an outdoor electrical outlet is a smart upgrade for any Edmonton homeowner. Whether you’re plugging in holiday lights, powering garden tools, or setting up an outdoor entertainment space, a properly installed weatherproof outlet makes life more convenient—and safer. If you’re wondering how to go about installing an electrical outlet outside, this guide breaks it down for you and explains why ACDC Electric Edmonton is your trusted local expert.




Why Install an Outdoor Outlet?


Outdoor power outlets open up a world of possibilities:

  • Power tools for landscaping or repairs
  • Outdoor lighting and holiday decorations
  • Hot tubs and water features
  • Entertainment systems for patios and decks


But outdoor electrical work comes with added safety and code requirements. That’s why working with a certified Edmonton electrician is often your best bet.




Key Considerations Before Outdoor Outlet Installation

1. Choose the Right Location

You’ll want to place the outlet near where you’ll actually use it—but it also needs to be safe from excessive exposure to rain or snow. Common areas include patios, garages, and garden walls.

2. Use a GFCI Outlet

Outdoor outlets must be GFCI (Ground Fault Circuit Interrupter) protected. This type of outlet cuts power instantly in case of a fault, protecting you from electrical shock.

3. Install a Weatherproof Cover

A weatherproof outlet cover (also called an “in-use” cover) is required by the Canadian Electrical Code. It shields your outlet even when a cord is plugged in.

4. Proper Wiring and Circuit Load

The outlet must be tied into an existing indoor circuit or a new dedicated breaker if needed. Overloading a circuit can lead to tripped breakers or fire hazards.



Can You Install an outdoor Outlet Yourself?

DIY-savvy homeowners might be tempted to tackle outdoor outlet installation solo. While it's legally allowed in some cases, it requires:

  • Solid understanding of Edmonton’s electrical codes
  • Comfort working with live wires and breaker boxes
  • Correct use of conduit, sealant, and mounting boxes

For peace of mind, safety, and insurance compliance, it’s highly recommended to hire a professional.



Why Choose ACDC Electric for Outdoor Outlet Installation in Edmonton?

At ACDC Electric Edmonton, we specialize in outdoor and indoor outlet installations that meet all local code requirements. Here's what sets us apart:

  • Fully licensed and insured Edmonton electricians
  • 20+ years of residential electrical experience
  • Fast, affordable, and code-compliant installations
  • GFCI protection and weatherproof outlet covers included
  • Transparent pricing and no hidden fees

We make sure your new outdoor outlet is safe, reliable, and built to last—even through Edmonton’s toughest winters.



Book Your Outdoor Outlet Installation Today

Don’t risk a shortcut when it comes to electricity. Trust ACDC Electric Edmonton for professional outdoor electrical outlet installation that’s done right the first time.

📞 Call now for a free quote
🔌 Safe, efficient, weatherproof outlet installs
🌐 Visit us at [YourWebsiteHere.com]



Cost to Install an Electrical Outlet

The ultimate expense of installing an electrical receptacle will vary according to multiple influencing elements. Paramount among these are the planned position, complexities inherent in the wiring arrangement, and, naturally, the electrician's stipulated hourly rate. Typically, expect a price range of $100 to $300 for installing your average electrical outlet.


However, it's important to note that where more intricate wiring looms or a particularly challenging installation setting arise, the outlay may escalate further, so homeowners should be prepared for possible additional expenses. A primary influencer over the eventual price is fundamentally the proposed physical space earmarked for its inclusion.


Attaching one in, let's posit that an immediately reached expanse showcasing established conduits translates into fairly simplistic efforts, which brings installation fees down sharply. This means that in more straightforward scenarios, homeowners can expect to save on installation costs.


Conversely, choosing more unconventional nooks not near established electrical tracks – necessitating that novel paths must then be strung forthwith – entails further labor, leading expenditures to ascend commensurately as one might intuit promptly enough herein, however.


For instance, in this case, such spaces often emerge within unexploited cellar or attic areas where the interstitial pathways of the walls undergo some exploration along lines towards the ultimate functionality objectives sought by informed observers, as one might observe at times, then under those very approximate parameters specified beforehand.


Electrician compensation impacts receipts at your destination post, ultimately from their on-hand jobbing for single hours, with values ranging approximately at a US$50 increment across almost an individual dollar total by $100, which depends considerably on the magnitude of that duration that must unfold fully. This means that the total cost is directly influenced by the electrician's hourly rate, which will vary depending on the complexity and the time it takes to complete the electrical job.


Simpler endeavors prove quicker completed versus intensive tasks which could engage more intensive manpower before finally their last task's finished efficiently now overall eventually too perhaps under due analysis by experienced technicians at this company particularly from us truly now herein after further queries if such queries exist post discussion previously given hereunder specifically therefore perhaps sometime when somebody asked recently for details as well.


💡 Typical Cost to Install a New 120 V Electrical Outlet

  • Installation (new outlet): CAD 150–300 per standard interior outlet.
  • Replacement of an existing outlet: roughly CAD 110–270
  • This includes both materials (outlet device, faceplate) and labor.


Why the variance?

  • Cost depends on distance from the panel or power source, drywall access, and ease of wiring.




Electrician Fees in Edmonton

  • Hourly rates typically run CAD 65–130, with a call‑out fee or minimum charge in many cases.
  • Most electricians have a one-hour minimum plus travel fee (~CAD 100–200).




📄 Permit Requirements in Edmonton

  • Under local safety codes, installing new wiring or outlets requires an electrical permit.
  • For homeowners (self or contractor), the minor alteration permit fee is CAD 160, plus a safety code fee (~CAD 6.40) — total ~CAD 166.40.
  • Contractor must be licensed with City of Edmonton.




🧾 Summary Estimate for Installing One New Outlet

   Item

 Estimated Cost (CAD)

    New standard 120 V outlet install

 150–300

   Call‑out / first hour

 100–200

   Permit (minor alteration)

 ≈ 166

   Estimated Total

 ~416–666

  Boosted by easier access or bundling jobs (installing several outlets in one visit) can lower per-unit cost.




🔌 Other Outlet Types (e.g. GFCI, 240 V, Outdoor)

  • GFCI outlets (wet areas): cost similar to new installs (CAD 150–350) with unit price CAD 12–40
  • 240 V outlet (e.g. dryer, EV charger) requires dedicated circuit — typical CAD 250–800+, depending on wiring length, panel capacity.




🏢 ACDC‑Electric Edmonton

  • ACDC‑Electric is a licensed contractor in Edmonton (as required for permits under Alberta regulations).
  • Their rates would likely align with regional norms: CAD 65–130/hr, call‑out fee, permit cost.
  • For smaller single‑outlet jobs, expect the estimate to fall within the ranges above when bundled appropriately.




Pro Tips to Keep Costs Down

  1. Bundle tasks: Installing multiple outlets in one visit spreads the call‑out fee.
  2. Prep the area: Clearing furniture or cutting drywall before arrival can reduce labor time.
  3. Request itemized estimate: Ensure cost breakdown includes labor, materials, permit fees.
  4. Get multiple quotes: Compare ACDC‑Electric’s estimate with at least one other reputable electrician.




📌 Final Takeaway

  • Expect to pay around CAD 400–600 for installing a single new standard interior outlet, including permit, labor, and materials.
  • Rates will vary with outlet type, complexity, and location.
  • ACDC‑Electric should provide a transparent estimate — match that against these typical ranges to evaluate fairness.

Are you wondering how much it costs to install an electrical outlet in Edmonton, KY? Whether you're upgrading your home, remodeling a room, or simply need more plug space, understanding the price and process is essential. At ACDC Electric Edmonton, we specialize in safe, affordable outlet installations for both residential and commercial clients.




💡 Average Cost to Install an Electrical Outlet in Edmonton, KY

The typical cost to install a new electrical outlet in the Edmonton area ranges from $150 to $300, depending on several key factors:

  • Outlet Type: Standard 120V outlets are more affordable than 240V or GFCI outlets.
  • Location: Installing an outlet on an existing wall vs. behind tile or brick can affect labor costs.
  • Wiring Access: If new wiring is needed or panel upgrades are required, costs may increase.
  • Labor Rates: Local labor and permit costs can also vary slightly by region.

💬 Pro Tip: Want a precise quote? Contact ACDC Electric Edmonton for a free, no-obligation estimate based on your exact needs.




🔌 Types of Electrical Outlets We Install

At ACDC Electric, we install all types of outlets including:

  • Standard 120V outlets
  • GFCI outlets (for kitchens, bathrooms, and outdoor areas)
  • 240V outlets (for appliances like dryers and ovens)
  • USB-integrated outlets
  • Smart outlets for automation




Why Choose ACDC Electric Edmonton, KY?

We’re proud to be Edmonton’s trusted local electricians, with over a decade of experience in outlet installation and wiring services. Here’s what sets us apart:

  • Licensed & Insured Technicians
  • Code-Compliant Installations
  • Upfront Pricing—No Hidden Fees
  • Fast Scheduling & Local Support

From single-outlet upgrades to full-home rewiring, ACDC Electric provides fast, reliable service you can count on.




Need a New Outlet? We’re Just a Call Away!

Don’t risk DIY electrical work—let our certified electricians handle it safely and efficiently. If you're in Edmonton, KY, reach out to ACDC Electric today and get your outlet installed quickly at a competitive rate.

📞 Call Now: (XXX) XXX-XXXX
🌐 Visit Us:
www.acdcelectricedmonton.com



How to Install an Outdoor Electrical Outlet?

Enhancing your outdoor spaces with an electrical outlet can greatly increase their functionality. Whether it's for powering garden lights, tools, or an outdoor entertainment system, having a convenient outlet can open up a world of possibilities. However, it's crucial to understand and follow electrical safety protocols and local regulations.


If you're unsure about tackling electrical work, it's always best to leave it to a qualified professional like ACDC Electric Edmonton. Your safety is paramount. Before commencing, assemble the prerequisite provisions and implements. Procure the necessary implements: a receptacle rated for outdoor use, a corresponding weatherproof enclosure, suitable cabling (UF-B being a typical example), conduit where mandated for code compliance or increased safeguarding, appropriate fasteners for the electrical lines, a screwdriver, pliers, a wire stripper, and, crucially, a voltage tester.


First, de-energize the designated circuit at the primary electrical panel. Then, validate its deactivation using the voltage tester before proceeding. Impeccable safeguarding practices consistently command the utmost priority. Typically, the procedure entails extending the electrical pathway from an existing indoor circuit to the intended outdoor terminus. Achieving this extension may necessitate drilling through walls.


Conduit will add increased protection while routing if installed along the exterior. Once the wiring's location is secured, precisely affix the conductors to the terminals located on the underside of the external receptacle, taking into account the manufacturer's specifications and any local electrical legislation governing the installation (such as the National Electrical Code in the United States or the IET Wiring Regulations in the UK).


Set the receptacle securely inside the rain-resistant enclosure, then fit its lid. Confirming satisfactory function is achievable by turning the energy flowing from the head electricity channel on. If anomalies are present, consider liaison with experts in ACDC electrics for guidance on managing the installation.



How to Install an Outdoor Electrical Outlet?

ACDC Electric Edmonton, KY

Installing an outdoor electrical outlet can make outdoor living more convenient—whether you’re plugging in holiday lights, power tools, or a backyard fountain. If you’re located in Edmonton, KY, ACDC Electric provides safe and code-compliant installation services tailored to your home’s needs. But if you're a handy homeowner curious about the process, here’s what to know.




Electrical Tools & Materials Needed:

  • Outdoor-rated GFCI outlet
  • Weatherproof electrical box with cover
  • Conduit and fittings (if surface mounted)
  • Wire (appropriate gauge for your breaker)
  • Drill and bits
  • Voltage tester
  • Screwdriver
  • Silicone caulk or sealant




Step-by-Step: Installing an Outdoor Outlet


1. Plan the Location

Choose a spot near an interior outlet if possible. This simplifies wiring and ensures the new outdoor outlet shares a circuit.


2. Turn Off the Power

Always turn off the power at the breaker box. Test the interior outlet with a voltage tester to confirm it’s off before working.


3. Drill Through the Wall

Drill a hole from the inside to the outside where you want the outlet. Be cautious of insulation, plumbing, or existing wiring.


4. Install the Weatherproof Box

Mount the outdoor-rated electrical box securely to the wall and ensure it is sealed with caulk to prevent moisture ingress.


5. Run the Wiring

Run electrical wire from the indoor outlet to the outdoor box. For exterior conduit, use PVC or metal conduit rated for outdoor use.


6. Wire the GFCI Outlet

Connect the wires to the GFCI outlet following the labeling: line vs. load. This provides added shock protection required by code.


7. Attach the Outlet and Cover

Secure the GFCI outlet in the box, install a weatherproof “in-use” cover, and seal any gaps with silicone caulk.


8. Test and Restore Power

Turn the breaker back on and test the outlet with a GFCI tester to ensure everything is working and safe.




Outdoor Outlet Safety & Code Notes

  • All outdoor outlets must be GFCI protected
  • Use weatherproof boxes and covers that protect the outlet when in use
  • Install the outlet at least 12 inches above ground
  • If unsure, hire a licensed electrician




Why Hire ACDC Electric in Edmonton, KY?

Outdoor electrical work involves safety risks and strict code compliance. At ACDC Electric, we specialize in installing weatherproof outdoor outlets that meet Kentucky's electrical code standards. Whether you're upgrading your outdoor space or adding power to a garage or patio, we handle the job quickly and safely.

✅ Licensed & insured
✅ Locally trusted in Edmonton, KY
✅ Residential & commercial services




Request an Estimate Today

Need help with outdoor electrical outlet installation in Edmonton, KY? Contact ACDC Electric today for a no-obligation quote and fast, professional service.

📞 Call 270-393-5007
🌐
www.acdc-electricedmonton.com

The installation of a cooktop's dedicated power receptacle is best entrusted to certified professionals, such as those at ACDC Electric Edmonton. With their expertise and experience, they understand the unique requirements of electric stoves, which require a dedicated 240-volt circuit, a significant departure from the standard 120-volt outlets commonly found in most residences.


Engaging with high-voltage electricity carries inherent risks; substandard installation may lead to electrical shock, ignite fires, and cause damage to your appliances. The insights shared in this article are provided for general knowledge purposes only, and we strongly advise consulting a skilled electrician like those at ACDC Electric Edmonton to manage your electric stove outlet installation.


Before commencement, assemble the requisite materials and implements. This will encompass a 240-volt outlet, appropriately gauged wire, a compatible circuit breaker, a screwdriver, wire strippers, and a voltage tester. Safety is paramount in this process. Initially, de-energize the pertinent circuit at the primary breaker panel.


Employ a voltage tester to rigorously confirm the absence of electrical current before proceeding. Detach the existing outlet, if present, and meticulously disconnect the affixed wiring. Establish connections between the new wires and their corresponding terminals on the new outlet, following the manufacturer's instructions strictly.


Once the outlet is secured, restore power to the circuit at the main breaker panel. Validate the outlet's operational status with a voltage tester to ensure its correct function. Should you find yourself uncertain or uneasy executing any of the aforementioned steps, we urge you to contact ACDC Electric Edmonton. Our cadre of seasoned electricians stands ready to install your electric stove outlet with safety and efficiency, ensuring adherence to all pertinent safety regulations and codes.


These regulations and codes are in place to protect you and your property, and we take them very seriously. We pledge to furnish our clientele with top-tier electrical services at competitive rates, always keeping safety and quality in mind.

Here’s a professional breakdown for installing a 240 V electric stove outlet (range receptacle) – ideal if you're working with AC‑DC Electric in Edmonton, KY:



1. Safety first




2. Planning & code requirements

  • Electric ranges require a dedicated 120/240 V circuit, usually 40–50 A. NEC allows #8 AWG on 40 A or #6 AWG on 50 A, but most professionals use 50 A/#6‑gauge for safety margin
  • Since 1996, new installs must use a 4‑prong (14‑50R) receptacle (hot, hot, neutral, ground).




3. Install the circuit

  • Run a dedicated 4‑wire cable (2 hots, 1 neutral, 1 ground) from your breaker panel to the outlet location Reddit.
  • At the panel, install a 240 V double-pole breaker, matching amp rating to the wire size.




4. Mount the outlet box

  • Choose a location behind the stove, typically just a few inches above floor level, per manufacturer specs The Spruce.
  • Use a flush or surface “old‑work” box, secured to studs or drywall. Mount boxes for appliances using metal boxes to handle cord strain.




5. Wire the receptacle

  • Strip cable sheathing and wires.
  • Connect:
  • Ground (green or bare) to grounding screw,
  • Neutral (white) to neutral terminal,
  • Hot wires (black and red) to the two hot terminals.
  • Neatly fold wires back into the box, secure the receptacle, and attach faceplate.




6. Secure and test

  • Anchor the receptacle box with screws into studs or drywall holes—many units include mounting points.
  • Make sure the plug clearance won't be obstructed by the stove.
  • Turn breaker back on, plug in the range, and test functions—both cooktop and oven heating, clock, etc.




7. Cord & range wiring

  • Purchase a 4‑prong range cord separately.
  • Typically, cord wiring is simply done at the back of the stove: attach cord ends to matching terminals (hots, neutral, ground) inside the stove according to the manufacturer's instructions — a straightforward DIY task.




Why call AC‑DC Electric?

If you'd rather have a licensed professional, AC‑DC Electric in Edmonton, KY is local and experienced—with over 25 years servicing residential jobs as shown on their site. They can handle everything: running cable, installing breakers, mounting the receptacle, and ensuring full code compliance.




⚙️ Bottom line

Installing a range outlet involves running a proper 240 V circuit, mounting a receptacle box, wiring a 4‑prong outlet correctly, and hooking up the range cord. If you’ve got electrical experience, it’s doable yourself. Otherwise, the local pros at AC‑DC Electric can ensure it’s done safely, cleanly, and up to code.





How to Install an Electrical Outlet in a Finished Wall?

When it comes to installing an Electrical Outlet in a Finished Wall, it's a significant challenge. But with meticulous preparation, the right tools, and a steadfast commitment to safety, many homeowners can successfully navigate this project. However, it's crucial to acknowledge the inherent hazards of electrical work.


 If any part of this process makes you feel hesitant or uncomfortable, it's always best to seek the help of a certified electrician, like those at ACDC Electric Edmonton.Before you even think about touching any electrical conductors, remember that safety always comes first. Start by de-energizing the affected circuit at the distribution panel. Use a non-contact tester on the existing receptacle to verify the absence of voltage.


Never assume a circuit is de-energized based solely on circuit breaker manipulation. Once you've confirmed a zero-energy state, gather your toolkit and materials. You'll need a drywall saw, a power drill with assorted bits, wire strippers, pliers, a non-contact voltage indicator, electrical insulating tape, the new outlet assembly, an approved junction box, and suitable connecting hardware.


With a safe work zone and all tools ready, you're now ready to start the installation. Carefully create an opening in the wallboard to fit the junction box. Then, route the new conductors from the existing receptacle to the point where the new outlet will be installed. Make all the necessary connections and securely place the outlet mechanism in the junction box.


Finally, restore the circuit’s electrical feed and test the new receptacle to ensure it's working properly. Following these steps will lead you to a successful electrical installation.



How to Install an Electrical Outlet in a Finished Wall?

ACDC Electric – Edmonton, KY

Adding an electrical outlet to a finished wall may seem daunting—but with the right approach, tools, and professional oversight, it can be done safely and cleanly. Whether you're upgrading your home office, kitchen, or entertainment area, understanding how the process works is crucial.


Why Add an Outlet to a Finished Wall?

Homes evolve over time. With increasing reliance on electronics, many older homes in Edmonton, KY lack enough outlets in convenient locations. Installing an additional receptacle:

  • Reduces reliance on extension cords (a fire hazard)
  • Improves room layout flexibility
  • Increases your home’s resale value


Electrical Tools & Materials Needed

If you're planning to DIY, gather the following:

  • Voltage tester
  • Stud finder
  • Electrical box (old work/remodel type)
  • Romex cable (NM-B)
  • Wire stripper
  • Outlet (receptacle)
  • Wall plate
  • Drywall saw or utility knife
  • Drill and bit set
  • Fish tape


⚠️ Important: Electrical work can be hazardous. If you're not confident or licensed, contact ACDC Electric in Edmonton, KY to ensure a safe, code-compliant installation.



Step-by-Step: Installing an Outlet in a Finished Wall


1. Plan the Outlet Location

Use a stud finder to locate studs. Pick a spot between studs, ideally aligned with existing outlets for easier wiring. Ensure the location meets NEC height codes and room-specific regulations (e.g., spacing in kitchens and bathrooms).


2. Shut Off Power

Turn off power at the breaker panel. Use a non-contact voltage tester to confirm no live wires are present.


3. Cut the Opening

Use a template to mark your outlet box shape on the wall. Cut the drywall using a drywall saw. Make clean cuts to ensure the remodel box fits snugly.


4. Run the Electrical Wire

You’ll either tap into an existing outlet or run a new wire from the panel:

  • Tapping from an Existing Outlet: Make sure it's not overloaded. Run a wire through the wall cavity using fish tape.
  • Running New Circuit: More complex; best handled by licensed electricians like those at ACDC Electric.


5. Install the Outlet Box

Insert the remodel box and tighten the side tabs until it's secured against the drywall.


6. Connect the Wires

  • Black (hot) to brass screw
  • White (neutral) to silver screw
  • Bare copper (ground) to green screw


Double-check wire connections for tightness and correct placement.


7. Mount the Receptacle & Cover Plate

Gently tuck wires into the box and secure the outlet. Add the wall plate for a finished look.


8. Restore Power & Test

Turn the breaker back on and test the outlet with a plug-in tester or appliance.




Electrical Code & Safety Compliance in Kentucky

In Edmonton, KY, all electrical work must follow the Kentucky Residential Code. Permits may be required, and improper installations can result in:

  • Fire hazards
  • Failed inspections
  • Voided homeowner’s insurance

That’s why homeowners trust ACDC Electric—licensed, insured, and experienced in working with finished walls in both new and older homes.



Trust ACDC Electric Edmonton, KY for Outlet Installation

Whether you’re updating one room or rewiring your entire home, ACDC Electric ensures that every outlet is installed cleanly, up to code, and ready for use. Don’t risk electrical fires or overloaded circuits—call us today for a free estimate on outlet installation in finished walls.

📞 Call Now: 270-393-5007
🌐 Visit:
www.acdc-electricedmonton.com

  • Can I install an outlet myself?

    In many counties in Kentucky, basic replacement of an outlet is allowed, but always check local codes and consider hiring a professional, especially for new outlet installations or if you are unsure about the wiring.

  • Do I need a permit?

    Yes, if you’re running new circuits or modifying wiring. Not required for replacing an existing outlet.

  • What kind of outlet do I need?

    • 15A or 20A depending on the circuit.

    • GFCI for bathrooms, kitchens, garages, or outdoors.


  • What if there are no nearby electrical outlets?

    You may need to run a new circuit from your breaker panel—this is best handled by a professional electrician..

  • How do I know if the outlet is wired correctly?

    Use an outlet tester. It checks for correct wiring, reversed polarity, and grounding issues.

  • Can I convert a 2-prong outlet to 3-prong?

    Yes, but only if the box is grounded, or you install a GFCI outlet with proper labeling.

  • When should an outlet be replaced?

    Replace outlets that are cracked, loose, don’t accept modern 3-prong plugs, are discolored/burned, or if the circuit trips often.

  • What type of outlet do I need?

    Use outlets matching the amperage of your circuit. Kitchens, bathrooms, and outdoor areas require GFCI outlets for safety.

  • How many outlets can I add to a circuit?

    Follow the 80% Load Rule: For a 20-amp circuit, about 10 outlets is typical, but consult an electrician for precise calculations.

  • Why do outlets have different slots?

    The narrow slot is “hot,” the wide slot is “neutral,” and the round hole or green screw is for “ground”.

  • Can I install a smart outlet by myself?

    Yes, if you are comfortable with standard outlets. Always follow manufacturer instructions and safety guidelines.

  • Important Reminders

    • Never install or wire an outlet with live power.

    • GFCI outlets are required by code in wet or damp locations.

    • If unsure about any step, consult a licensed electrician.


Why You Should Choose AC-DC Electric Edmonton, KY?

If you’re still having trouble finding the right electrician to help you with your residential electrical issues, consider contacting AC-DC- Electricedmonton. We maintain a network of reliable and affordable electricians who can offer assistance.


Our Experience

At AC-DC Electricedmonton we have been offering both residential, commercial and industrial electrical services for over four decades. Our experience has taught us the best ways to perform various procedures. Our management and staff have seen residential electric systems evolve over time and have gained a deeper understanding of how they work. Thanks to our experience, we rarely encounter issues that we have never seen before.



Our knowledge

Each of our electricians and technicians is licensed, certified, and trained to provide high quality electrical services. We understand the importance that electric systems play in both residential and commercial properties. This is why we handpick the best electricians who are both knowledgeable and have demonstrated their ability in a variety of situations.


At AC-DC Electricedmonton, we foster an environment that encourages excellence. You can count on our electricians and technicians to get the job done with both speed and skill.



Our Transparent Pricing

Dealing with an electrical problem at home can be incredibly distressing, and many electricians and companies are willing to exploit people experiencing such issues by charging them high fees. At AC-DC Electricedmonton, we strive to provide high quality services at affordable rates.


Our electricians can also offer you a free estimate before you hire them. This ensures you remain aware of how much you will need to pay before using our electrical services.


If you’re ready to tackle your residential property’s electrical problems quickly, please
contact AC-DC Electricedmonton today. Our experts are always happy and ready to help residents in Edmonton, Glasgow and Columbia, KY. Call today for a free estimate at 270-393-5007

You might also like

electrical wire colors, residential, electrical hot wire colors, neutral wire color, ground wire ,
By Randy Johnson July 8, 2025
Understanding the meaning of electrical wire color codes in your home is not just helpful,Typically, the colors most often encountered include black, white, green (or uninsulated copper), and red. Black wires usually function as 'hot' conductors, charged with transporting electrical current from the power source.

Book a Service Today
